長節(jié)距米制輸送鏈廣泛用于冶金、礦山、制糖、陶瓷、造紙等行業(yè)的鏈式輸送機設備和裝卸設備。

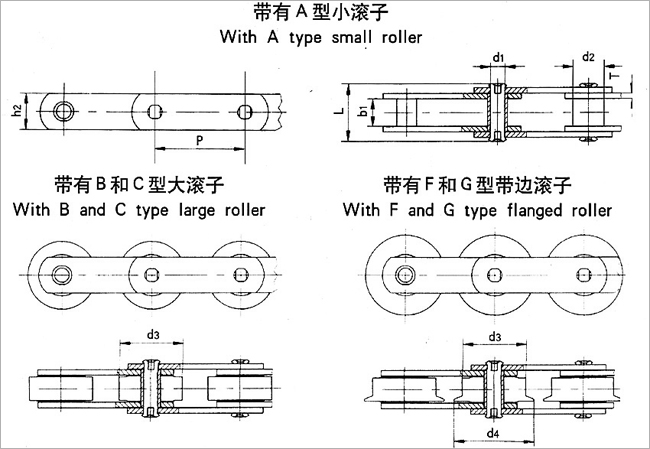

ISO 鏈號 | 節(jié)距 | 內節(jié) 內寬 | 銷軸 直徑 | 滾子 直徑 | 銷軸 長度 | 鏈板 高度 | 鏈板 厚度 | 極限拉 伸載荷 | |||||||||
p | b1 | d1 | d2 | d3 | d4 | L | h2 | T | Q | ||||||||
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | ||||||||
M20 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 15 | 6.0 | 12.5 | 25 | 35 | 35 | 19 | 2.5 | 20.0 | |
M28 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 17 | 7.0 | 15.0 | 30 | 40 | 40 | 21 | 3.0 | 28.0 | |
M40 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 19 | 8.5 | 18.0 | 36 | 45 | 45 | 26 | 3.5 | 40.0 | |
M56 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 23 | 10.0 | 21.0 | 42 | 55 | 52 | 31 | 4.0 | 56.0 | |
M80 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 27 | 12.0 | 25.0 | 50 | 65 | 62 | 36 | 5.0 | 80 | |
M112 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 31 | 15.0 | 30.0 | 60 | 75 | 73 | 41 | 6.0 | 112.0 |
M160 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 36 | 18.0 | 36.0 | 70 | 90 | 85 | 51 | 7.0 | 160.0 |
M224 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 42 | 21.0 | 42.0 | 85 | 105 | 98 | 62 | 8.0 | 224.0 |
M315 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 47 | 25.0 | 50.0 | 100 | 125 | 112 | 72 | 10.0 | 350.0 | |
M450 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 55 | 30.0 | 60.0 | 120 | 150 | 135 | 82 | 12.0 | 450.0 | |
M630 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 65 | 36.0 | 70.0 | 140 | 175 | 154 | 103 | 14.0 | 630.0 | |
M900 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 76 | 44.0 | 85.0 | 170 | 210 | 180 | 123 | 17.0 | 900.0 |
